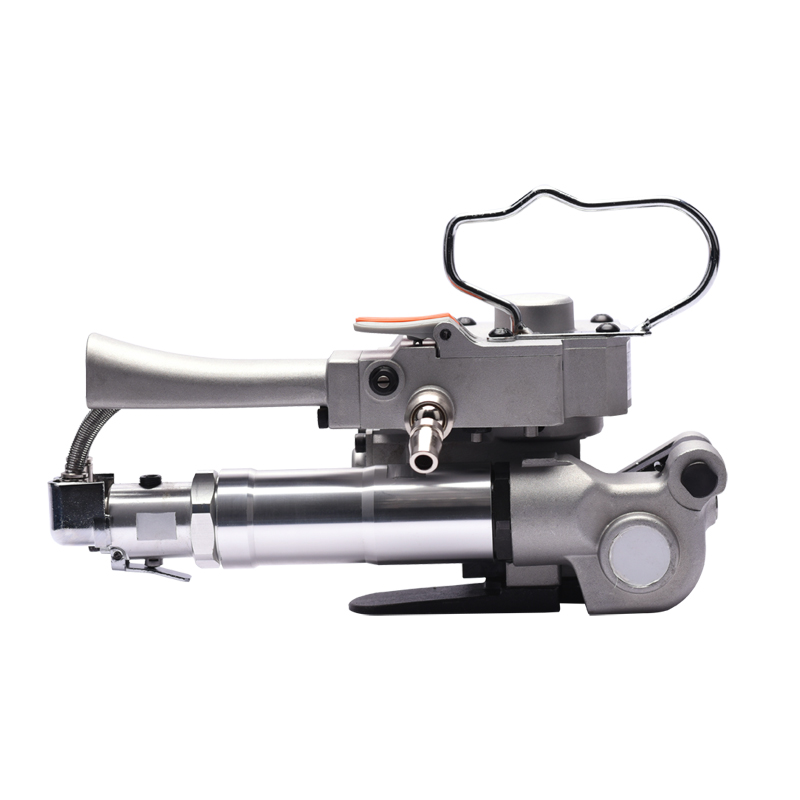

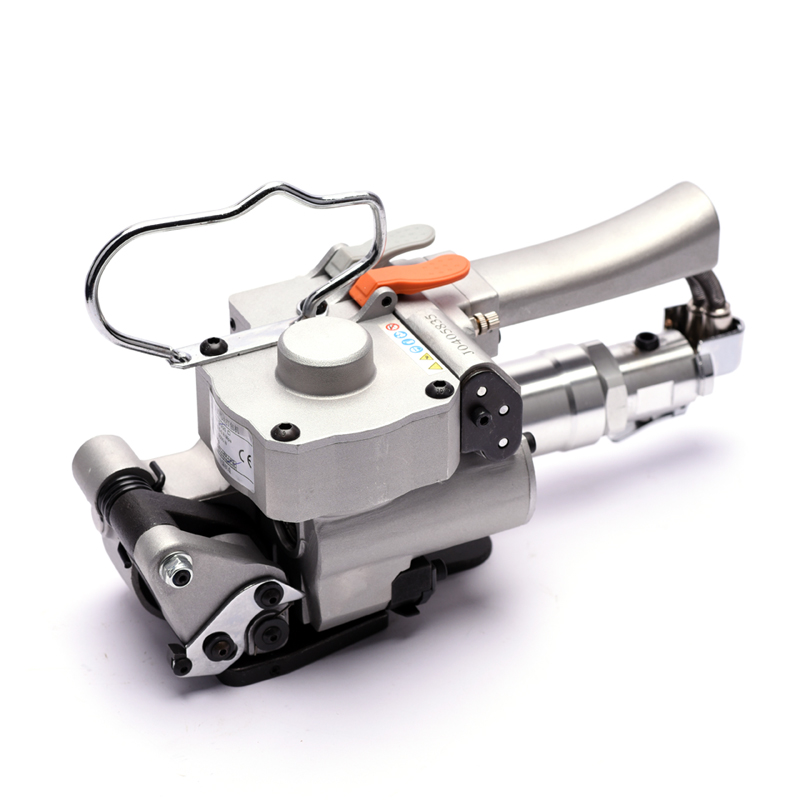

A19 Pneumatic Strapping Machine for 13-19mm PET/PP Automatic 3500N Strapping Tools
Inquiry Now →

Product Description

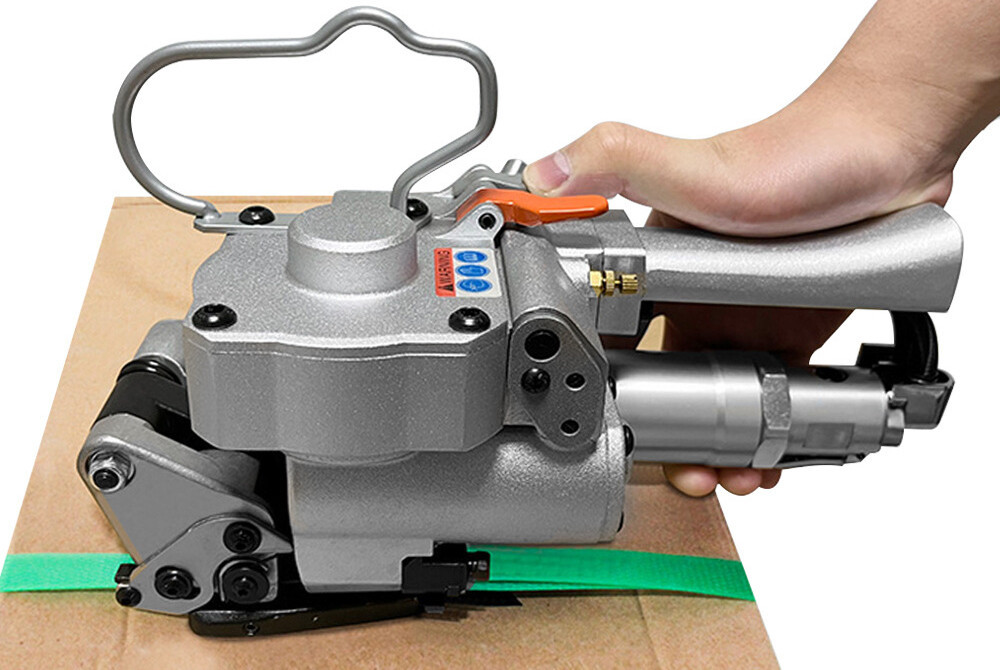

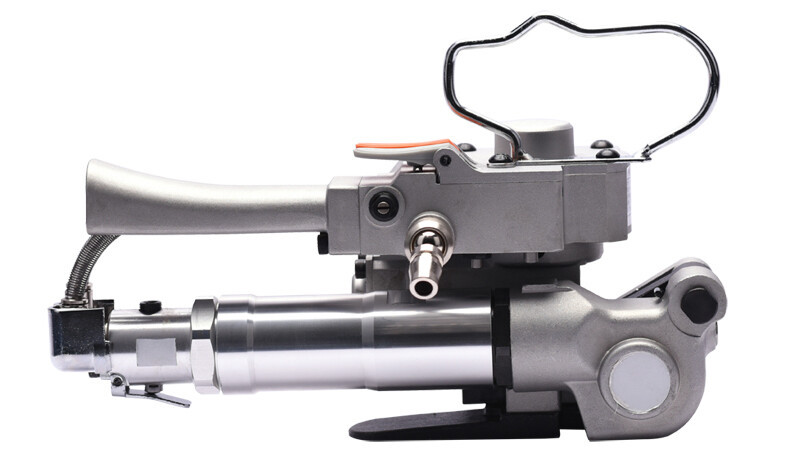

A19 Pneumatic Strapping Machine for 13-19mm PET/PP Automatic 3500N Strapping Tools

A19 and A25 Strapping Machine is specially designed for binding articles with PET PP packaging belt.

Applicable width of packing belt: 13-19mm (A19), 19-25mm (A25).

This pneumatic tool is a kind of friction and welding packaging machine.
Specification
Model
A19
A25
Applicable strap size
Strap width
13-19mm
19-25mm
Strap thickness
0.5-1.5mm
Max. allowable working pressure
0.8Mpa
Required scope of working pressure
0.5-0.7Mpa
Ideal working pressure
0.63Mpa
Strap Material
PP PET
Strap sealing type
Friction welding
Max. Tension Force
3500N
Machine Weight
3.8kg
Machine size
278.5* 149.5* 173mm

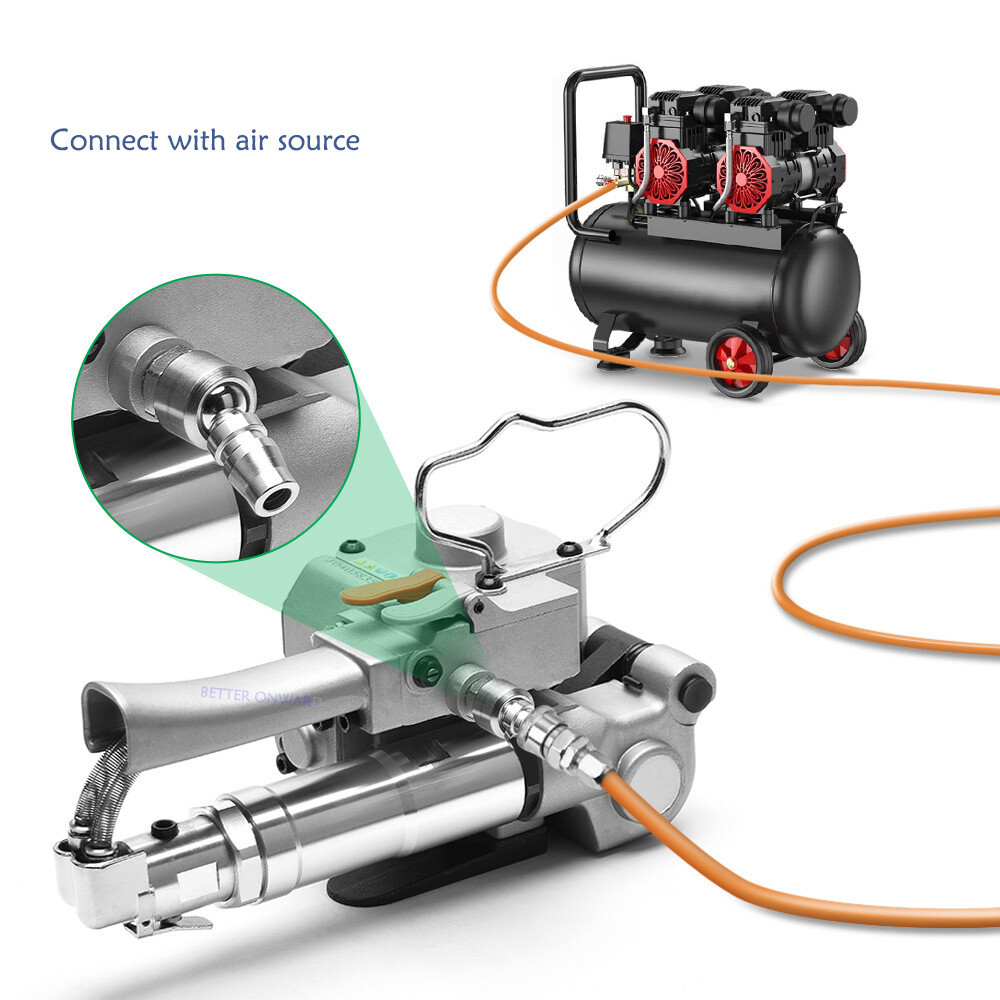

Connect with air source

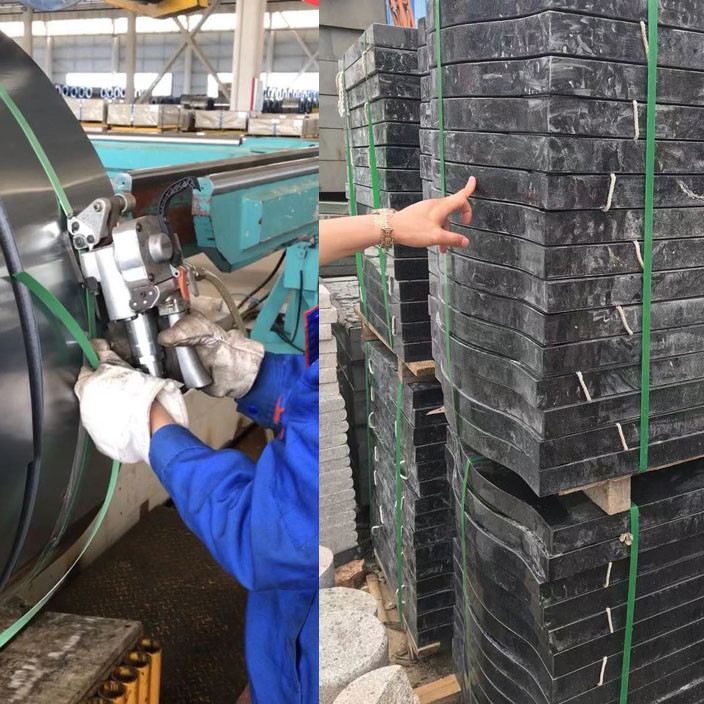

Application
