LF1080B Continuous Vacuum Air Suction Nitrogen Gas Filling Bags Band Sealing Machine

nina@betteronwardmachinery.com

+86 18553788237

Inquiry Now →

Product Description

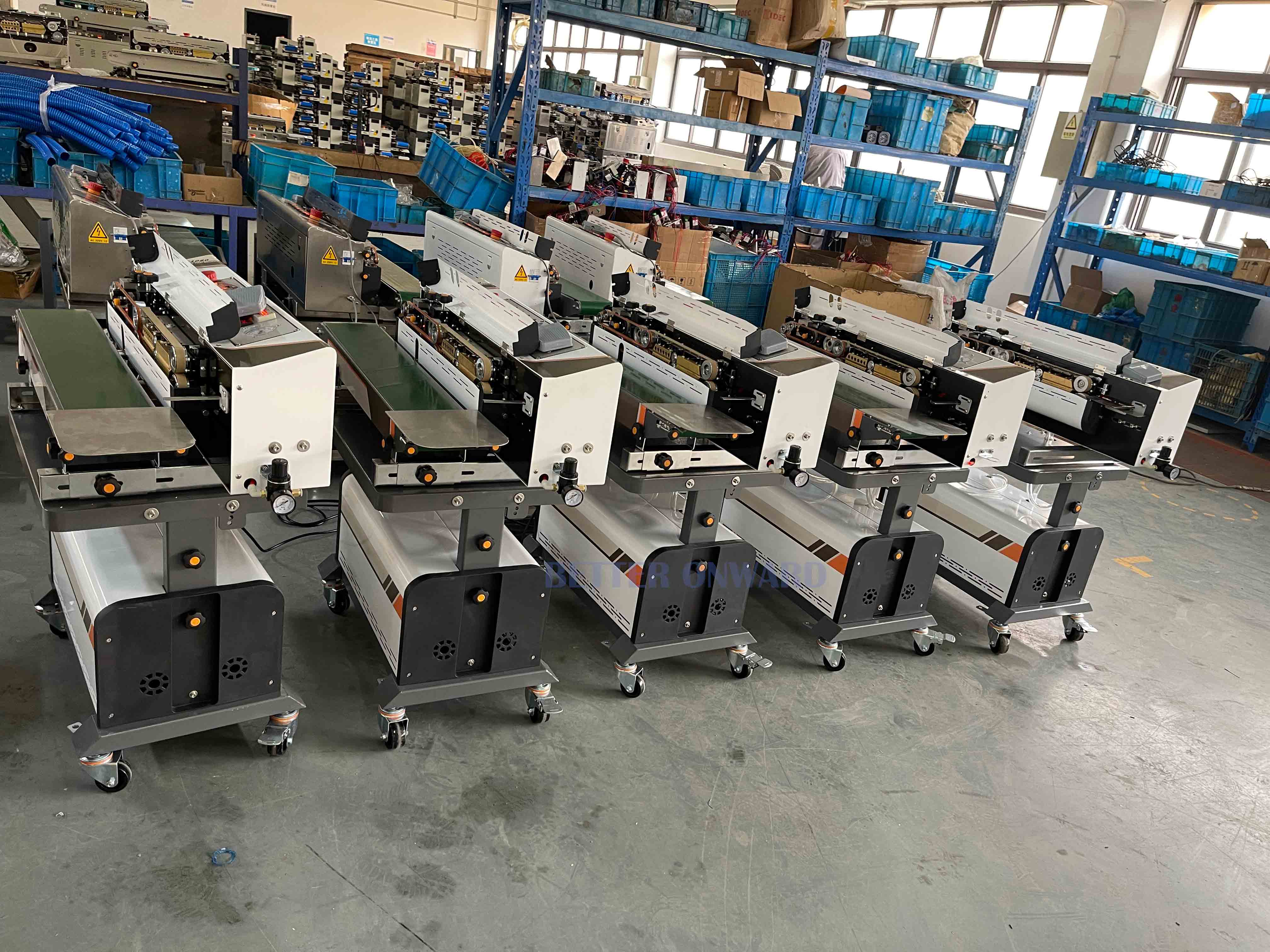

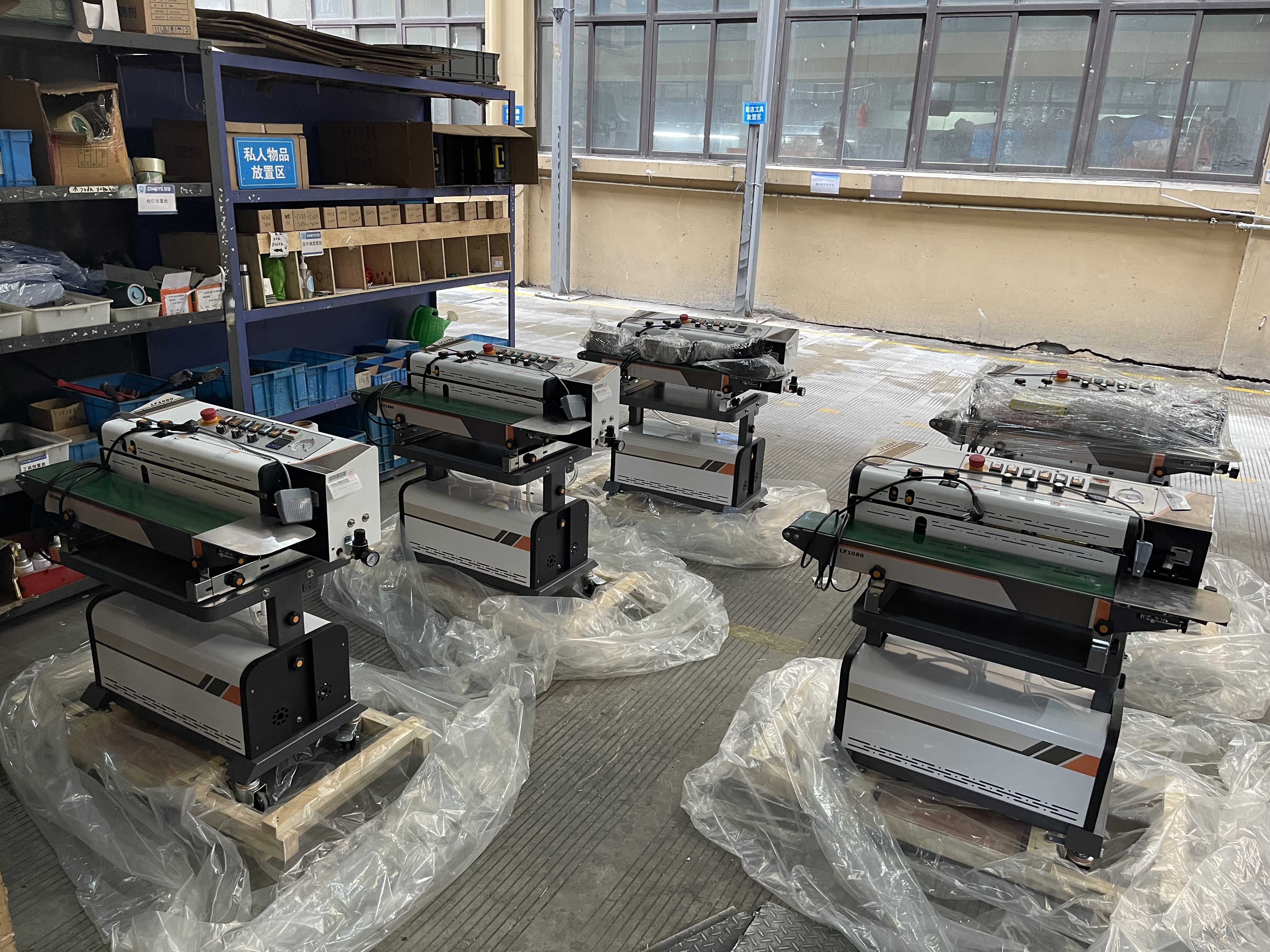

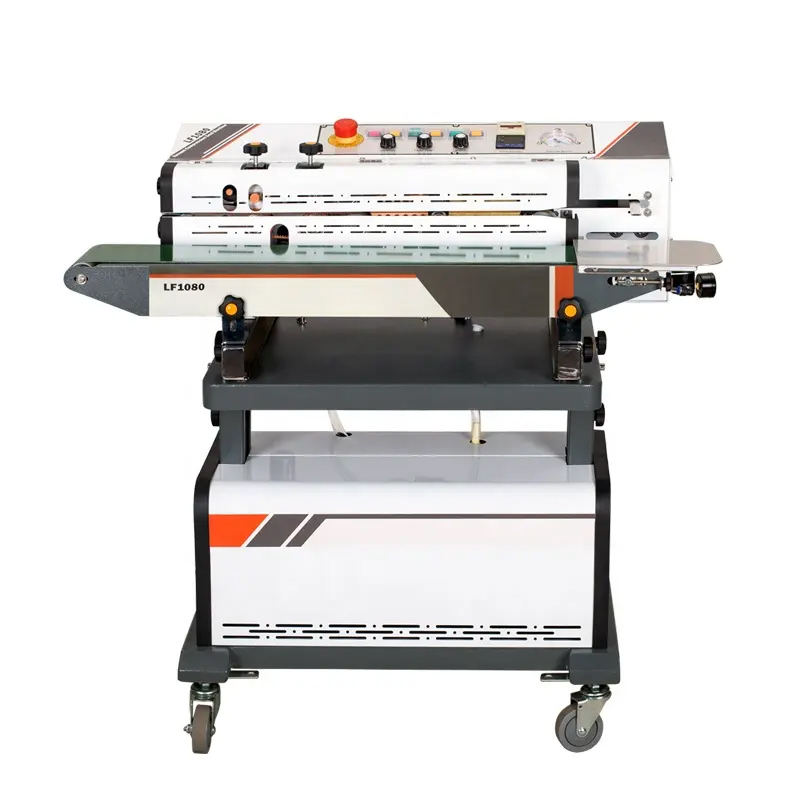

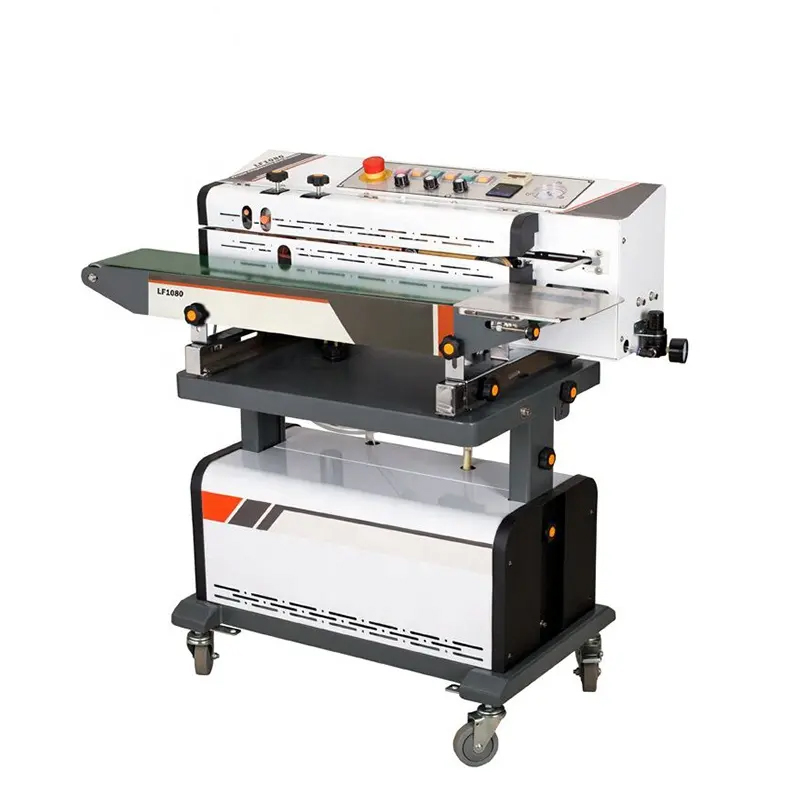

LF1080B Continuous Vacuum Air Suction Nitrogen Gas flushing Bags Band Sealing machine

This machine is based on the widely absorb essence of similar foreign products and vacuum machine.

LF1080A continuous packaging machine, function: vacuum, sealing, ink roller printing.

LF1080B continuous packaging machine, function: vacuum, gas filling, sealing, ink roller printing.

LF1080C continuous packaging machine, function: gas filling, sealing, ink roller printing.

When gas filling, need to connect air source.

This machine with Simple and novel structure, beautiful appearance, complete function, high degree of automation, can greatly reduce the labor intensity of the operator.

Specification

Model	LF1080A	LF1080B	LF1080C
Function	Vacuum, Continuous Bag Sealing, Printing	Vacuum, Gas Filling, Continuous Bag Sealing, Printing	Gas Filling, Continuous Bag Sealing, Printing



Input Power	110/220V 50/60Hz
Power	875W	875W	875W
Sealing speed	0-12 m/min	0-12m/min	0-12 m/min
Sealing Width	12 mm	12mm	12 mm
Temperature range	0~300℃	0~300℃	0~300℃
Max. thickness of single layer film	≤0.08mm	≤0.08mm	≤0.08 mm
Max. load capacity of conveyor	≤3kgs	≤3kgs	≤3kgs
Machine Size(LWH)	10254801080mm	10254501080mm	10254501080mm
Weight	85Kg	85Kg	85Kg

It could be a vacuum packaging machine, also could be gas filling sealing machine, to keep the product fresh.

Ink Wheel Printing

Pure copper heating block, heating evenly.

Air-cooled cooling block, when heat dissipation, will more uniform.

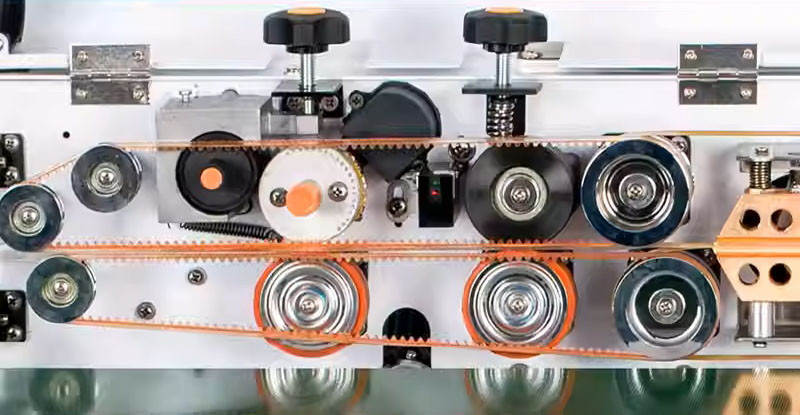

Good quality conveying belt, is wear resistance.

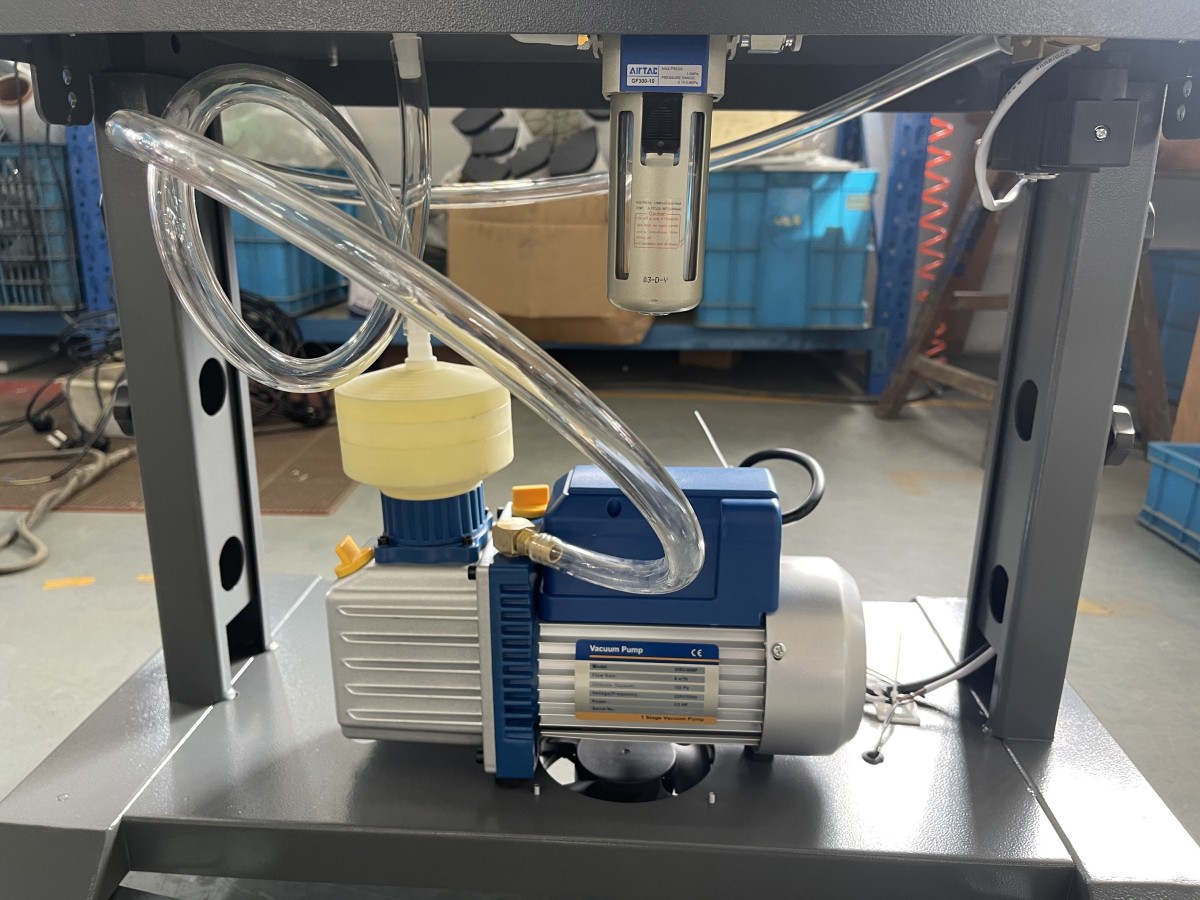

Insert the air nozzle into the packaging bag, the vacuum pump will suction the air out of the bag.

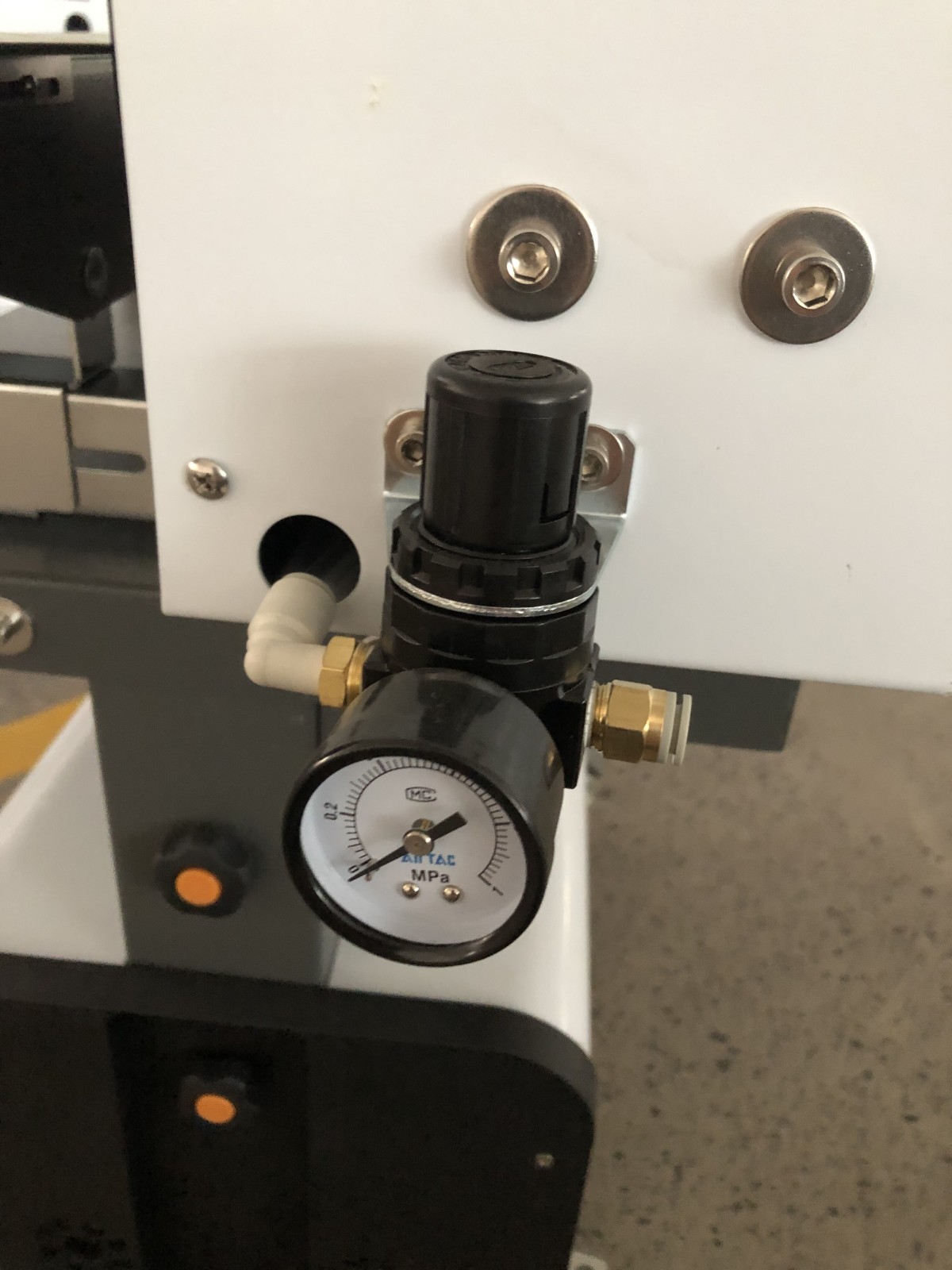

When the Photoelectric sensor switch receives a signal, the inflation electromagnetic valve will open, to fill the required gas into the packaging bag.

The conveying table can be adjusted up and down, front and back, which improves working efficiency.

The machine's height can be adjusted up and down, is more convenient and flexible.

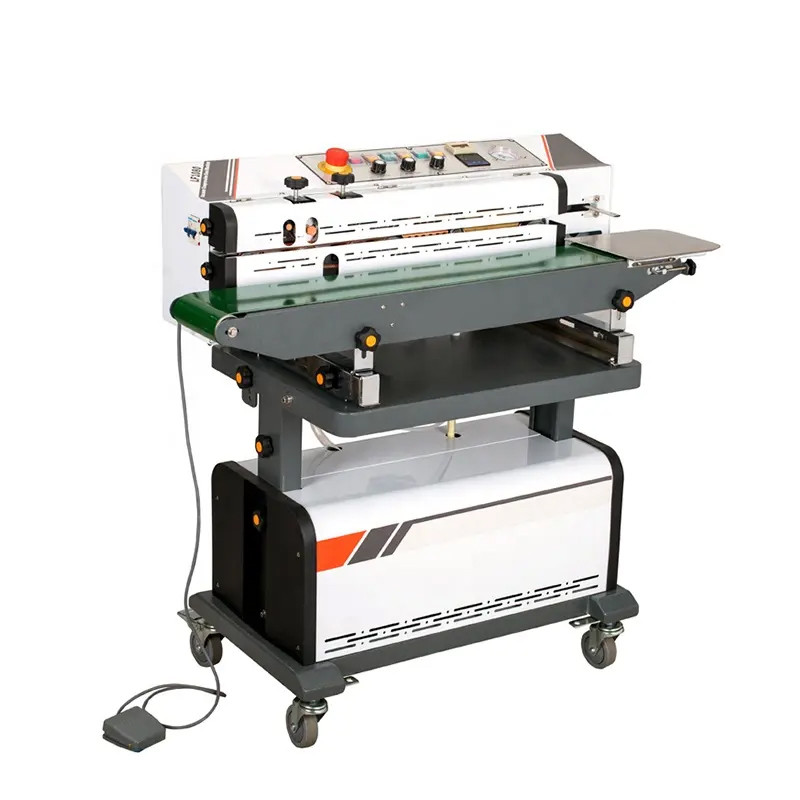

Foot pedal vacuum design: when the vacuum switch is turned on, step on the pedal, then the air nozzle will start vacuuming.
